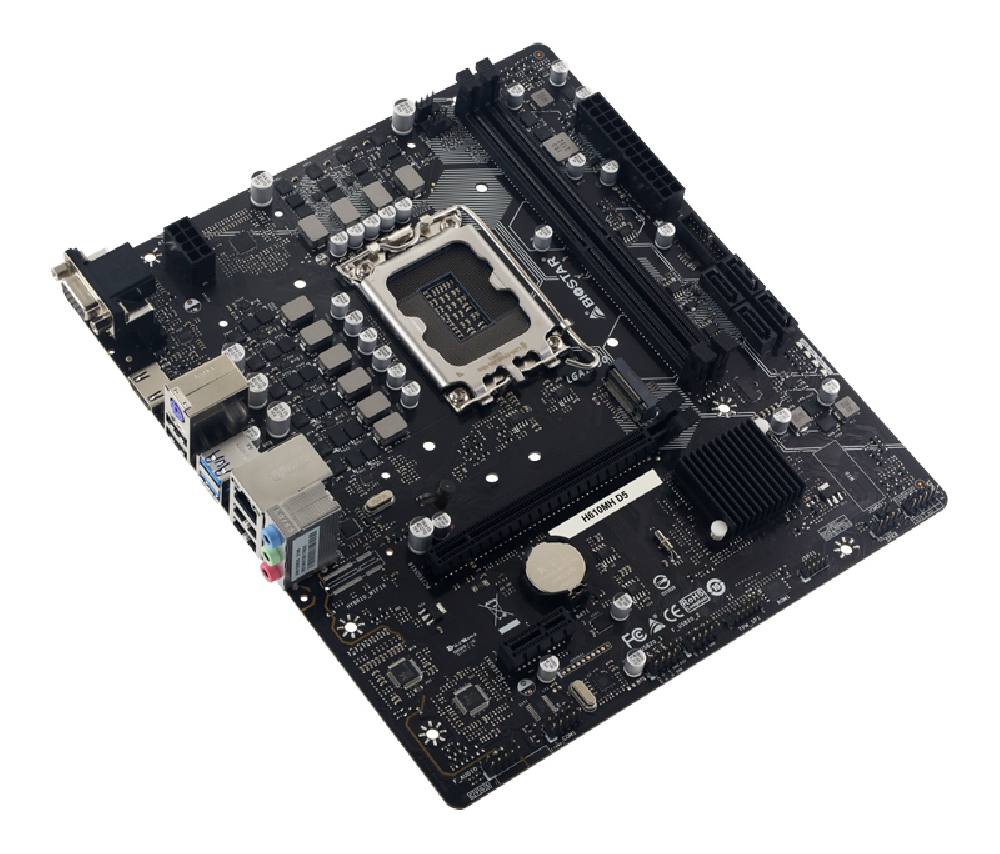

BIOSTAR μητρική H610MH-D5, 2x DDR5, s1700, uATX, GbE LAN, 7CH, Ver. 6.3

BIOSTAR μητρική H610MH-D5, 2x DDR5, s1700, uATX, GbE LAN, 7CH, Ver. 6.3

Η H610MH-D5 της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset H610 της Intel.
Διαθέτει 2 εξόδους γραφικών: VGA και HDMI.

-Supports 12th/ 13th Generation Intel Core™ Processor
-Intel H610 single chip architecture
-Supports 2-DIMM DDR5 up to 96 GB Memory
-Supports PCIe 4.0
-Supports PCIe 3.0 M.2 (32Gb/s)
-Supports HDMI 4K2K
-Supports USB 3.2 Gen1

Τεχνικά χαρακτηριστικά
Chipset: Intel H610
CPU support: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel® Celeron processors in the LGA1700 package
Memory:
-Supports Dual Channel DDR5 4800
-2x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
-Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
-Support Intel® Extreme Memory Profile (XMP) memory modules
Integrated video: Supports DX12, Supports HDCP
Storage:
-Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset
-1x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
-Supports M.2 Type 2242 /2260 /2280 SSD module
-Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA SSD
-4x SATA III Connector (6Gb/s)
LAN: Intel I219V, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC897, 7.1 Channels, High Definition Audio
USB: 4x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
Expansion slot:
-INTEL 12th/13th Processors
-1x PCIe 4.0 x16 Slot
-Intel H610 Chipset
-1x PCIe 3.0 x1 Slot
Dimension: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
OS support: Supports Windows 10 (64bit) / 11(64bit)
Rear I/O:
1x PS/2 Keyboard/ Mouse Port
1x HDMI
1x VGA Port
2x USB 3.2 (Gen1) ports
4x USB 2.0 ports
1x LAN port
3x Audio Jack
Internal I/O:
4x SATA III Connectors (6Gb/s)
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
